PurduDraw Overview

PurduDraw Spring ‘25

Section titled “PurduDraw Spring ‘25”

An Automated Etch A Sketch-Style Drawing Machine

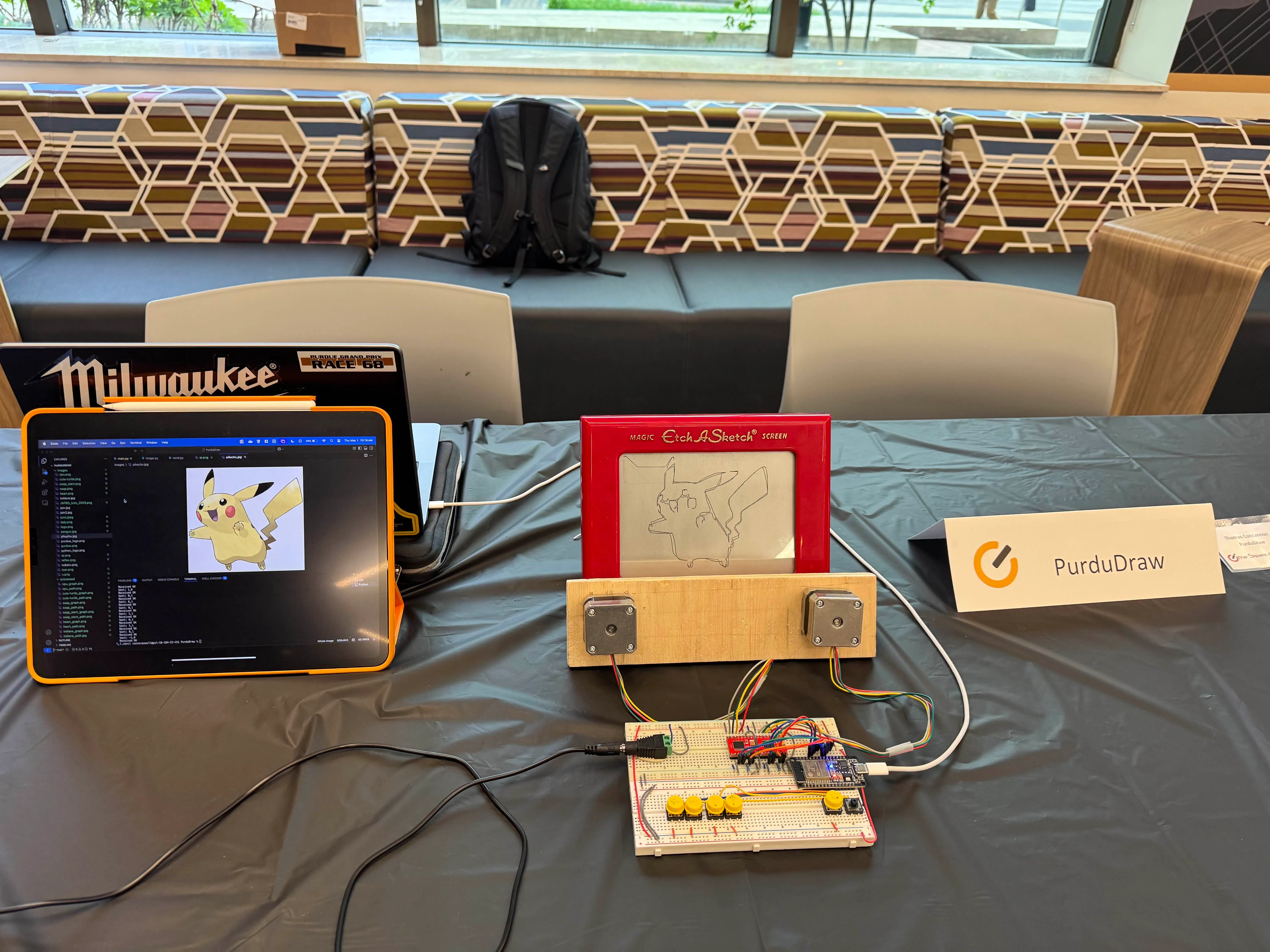

PurduDraw1

Overview

Section titled “Overview”

PurduDraw is a team project lead by Connor Powell partnered with Tom Concannon. The project consisted of a fully automated Etch A Sketch capable of taking an image, processing it into drawable paths, and rendering the result using stepper motors. PurduDraw was then entered in the annually ECE spark challenge.

We took inspiration from classic mechanical drawing toys and merged it with modern embedded systems and algorithmic control. The result: a surprisingly accurate, fully functioning drawing robot.

PurduDraw2

Hardware Setup

Section titled “Hardware Setup”

At its core, PurduDraw uses:

  • Stepper motors (for precise movement in X and Y directions)
  • Direct drive motor coupling to interface with the Etch A Sketch dials
  • Microcontroller (ESP32) to serially receive drawing instructions and control motors
  • Serial interface to communicate between host (Python) and the MCU

The mechanical system is driven much like a CNC — the two stepper motors control a point that moves in 2D space, effectively dragging a stylus across the drawing surface.

Software Pipeline

Section titled “Software Pipeline”

The real magic lies in the software. Here’s the flow we implemented:

  1. Image to Graph

    Section titled “Image to Graph”

We start by converting an input image into a node/graph-based representation:

  • Applied Laplacian filtering to extract strong gradients and edges
  • Simplified the output into a sparse set of meaningful nodes

  1. Path Optimization

    Section titled “Path Optimization”

With the graph defined, we used a Traveling Salesman Problem (TSP) approach to find an efficient order to connect the points. This reduced backtracking and optimized motor movement.

  1. Command Generation

    Section titled “Command Generation”

We generated a list of movement commands representing each line segment:

  • Each command contained a vector for traveling from the current node to the next
  • Commands were serialized and sent to the MCU over the serial terminal

  1. Microcontroller Execution

    Section titled “Microcontroller Execution”

The MCU parsed the serial stream and translated the path into precise stepper motor actions, moving the drawing stylus

Reflections

Section titled “Reflections”

PurduDraw was an awesome intersection of image processing, algorithm design, hardware control, and embedded systems. It was one of the more satisfying builds we have worked on — a full pipeline from software to physical output.
